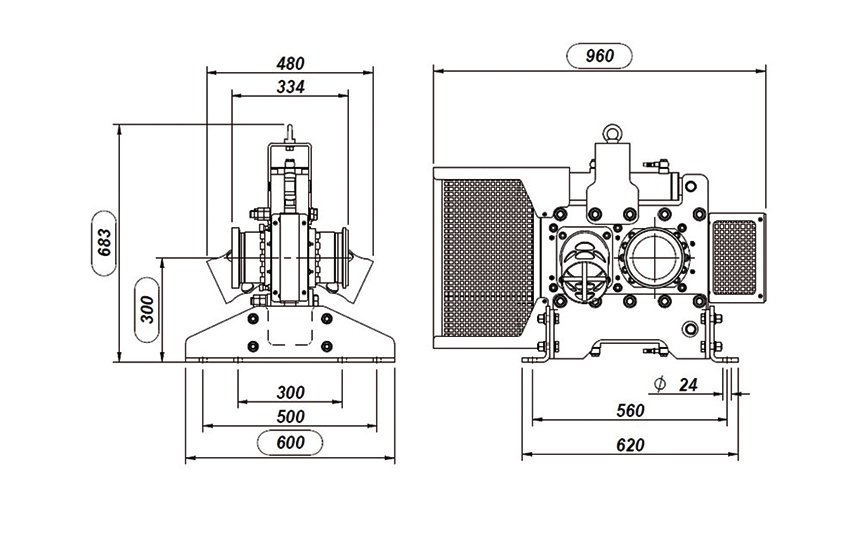

High Pressure Horizontal Hydraulic Shut Off Valve
2/2 Hydraulic shut-off valve essential for high-pressure lines (high-rise buildings). The double hydraulic cylinders allow the shut-off valve to close firmly. Concrete can no longer bleed, respectively flows backwards. The strong structure absorbs water hammer during pumping.
Drive Options:
Without controls, for remote operation.
Lever directional control valve (for connection with external hydraulic unit).
Hydraulic powerpack (upon request).
PLUS
All moving parts are protected by safety grids.
Internal blade cleaning can be done without disassembling the conveyor line.
According to the EN12001:2012 “Conveying, spraying and placing machines for concrete and mortar – Safety Requirements”
